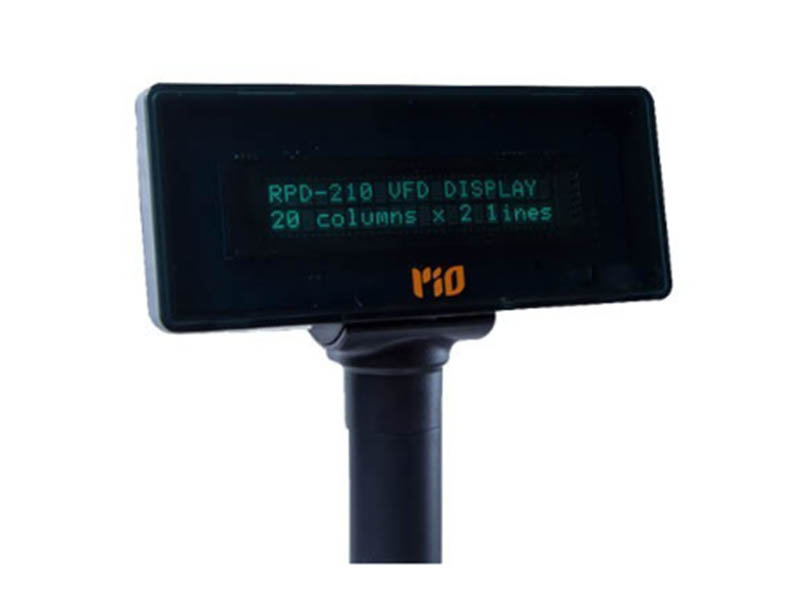

RIO Customer Display RPD 210

Description

ModelRPD-210
Display
Display MethodVacuum Fluorescent Display (blue green)
Brightness700 cd/m2
Number of character40 characters (20 columns x 2 lines)
Viewing
Character font5 x 7 dot matrix
Character size3.50mm x 5.00 mm
Character Type96 alphanumeric, 13 international character sets, 1 user define character, 14 code page
Electrical
Power SupplyPowered by USB, +5Vdc and +9 ~ 35Vdc are optional
Power Consumption2W (Max.)
MTBF30,000 hours (power on time)
Operations
Operating Temperature0 ~ 45
Operating Humidity10 ~ 90 % RH
Storage Temperature-10 ~ 50
Storage Humidity10 ~ 90 % RH
Module Dimensions146 (W) x 49.2 (H) x 26.4 (D) mm
Display Dimensions176(W) x 130(D) 355(H)mm, 176(W) x 130(D) 224(H)mm, 176(W) x 130(D) 135(H)mm
ConnectivityData & Power – USB
Module Weight172 g
Display Weight0.5 kg

Model: RPD210

•  Data can be display on 20 columns x 2 lines
•  Display panel is adjustable to provide the best view angle
•  Provide 2 pole for best position installation
•  Esc/pos command compatible
•  International character set is selectable
•  User-defined characters can be download
•  User-defined message can be download
•  Green power function. USB Powered.
