SUNMI L2s

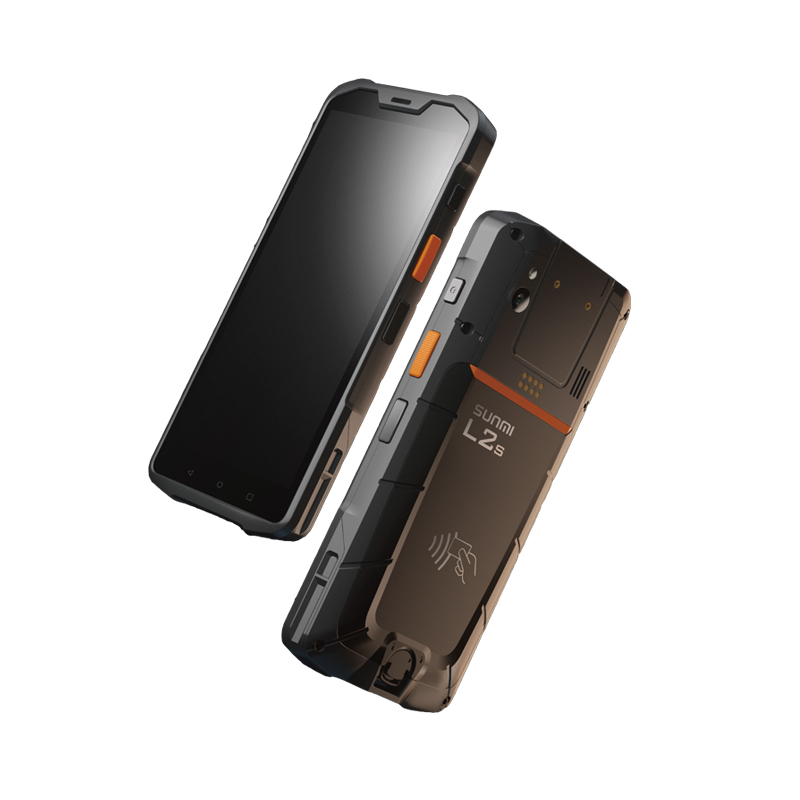

SUNMI L2s Handheld Computer

A new generation of enterprise PDA， built to digitize your frontline operations.

Upgraded Protection

The 5.5″ HD screen matched with Corning Gorilla Glass enhances the resistance to drop and scratch. With the IP65 and reinforcement design, SUNMI L2s survives the 1.5-meter drop test.

ATL 5000mAh Large Capacity Battery With High Stability

SUNMI L2s uses battery from ATL, the world’s leading manufacturer of lithium batteries, whose charging cycle is up to 800 cycles, ensuring the reliability of battery. With the built-in intelligent chip, the battery can avoid overcharging to extend battery life.

Professional 2D Scan Engines

1D/2D barcodes can be recognized even if they are scratched, folded or stained. Three scan engines are available (Zebra/Honeywell)

UHF-RFID Labels Identification

SUNMI L2s can identify product labels in group efficiently up to 50cm*, reducing the chance of manual operation errors.

(*Only the RFID version supports it, and the actual distance depends on the label size)

Dual Intercom Modes Make Communication More Free

Supporting analog/digital intercom, L2s can connect with traditional walkie-talkies seamlessly.

(*Only supported by the PTT version)

Optional Accessories

Charging base*

• PDA and battery can be charged simultaneously for high-frequency useage.

UHF handle*

• With UHF handle, RFID labels can be identified in groups accurately.

4-slot battery charger

• Support charging up to 4 PDAs simultaneously and intelligent battery management.

Hand strap

• SUNMI L2s is convenient for daily mobile use with hand strap.

Scanner handle*

• With scanner handle, L2s can be used in high- intensity barcodes scanning scenarios such as inventory, manufacturing, and logistics.

SUNMI L2s Tech Specs

General Configuration

OS

• Android 9.0 SUNMI OS

Processor

• ARM Cortex-A53 quad Core Processor 1.8GHz

Display

• 5.5″ HD，1440×720 Capacitive multitouch

Protection Ratings

• Sealing: IP65
• Drop Specifications: 1.5M

Audio

• Two microphones Vibrate alert Speaker

Communication

• 4G/3G/2G

Wi-Fi

• 2.4G/5G,Support IEEE 802.11 a/b/g/n/ac

Bluetooth

• Support Bluetooth 5.0 Support BLE

GPS

• Support AGPS Support GPS/Glonass /Beidou/Galileo

Battery

• Removable polymer lithium main battery 3.8V/5000mAh

Charger

• Type-C 5V/2A

NFC

• Supports TypeA&B card, Mifare card,
• Felica card; ISO/IEC 14443 and ISO15693 compliant

Dimensions (L*W*H)

• 154.4*74.6*17.1mm

Environment

• Working temperature: -20°C~55°C，
• Storage temperature: -40°C~70°C

Memory

2GB RAM + 16GB ROM

Card Slot

• 2*SIM , 1*PSAM ， 1*MicroSD(TF)

Camera

• Rear: 5MP AF
• Front: 2MP FF
• Rear camera scanning, support 1D / 2D barcode scanning

Buttons

• 1* Power (lock screen) button 2* Volume (+/-) button
• 1* Custom button

Sensor

• G-Sensor/Proximity sensor /Light sensor/E-compass

Ports

• 1*Type-c，support OTG 2*pogo pin in bottom for charging

Total Weight

• 231g
