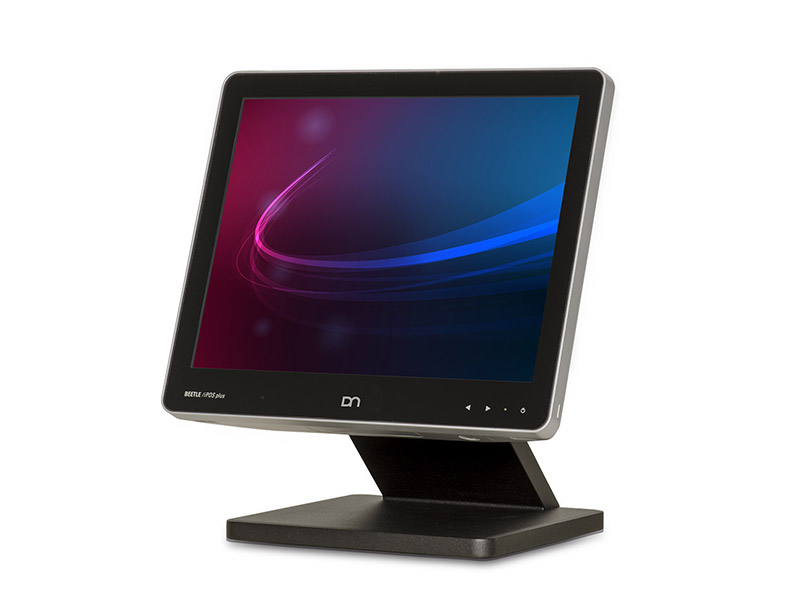

BEETLE /iPOS plus

BEETLE /iPOS plus

All-in-one 15” touch and kiosk system using energy-efficient Intel Braswell processor technology.

Description

Processors

  • Intel Celeron N3060, 2x up to 2.48 GHz
  • Intel Pentium N3710, 4x up to 2.56 GHz

Main Memory

  • 4 – 8 GB

Display

  • 15“ LED-backlit LCD, 4:3
  • Resolution 1024×768
  • Projected capacitive multi-touch
    or 5-wire resistive touch

Interfaces

  • RS232 (standard/powered): 1/1
  • USB 2.0/3.0: 2/2
  • PoweredUSB (12V): 1
  • Second display: DVI / PLink2
  • LAN (MBit/s): 10/100/1000
  • Cash drawer: 1

Desktop I/O hub (optional)

  • RS232 (standard/powered): -/2
  • PoweredUSB (12V/24V): 2/1

Storage media

  • M.2 SATA SSD
  • 2.5“ hard disk
  • Solid State Disk (SSD)

Adaptable peripherals (option)

  • MSR
  • Fingerprint reader
  • iButton key reader
  • NFC Reader
  • Rear-mounted customer display

Integrated features

  • Stereo loudspeakers
  • NFC reader option
  • WLAN option

System management

  • Desktop Management Interface (DMI)
  • Preboot Execution Environment (PXE)
  • Wake on LAN (WoL)
  • Advanced Configuration and Power Interface (ACPI)
  • Management Agent (BEETLEINFO)

Dimensions (W x D x H in mm)

  • 349 x 232 x 356 (including stand)

Operating systems

  • Windows 7 Pro / POSReady 7
  • Windows 10 IoT Enterprise for Retail
  • WNLPOS (Linux)
