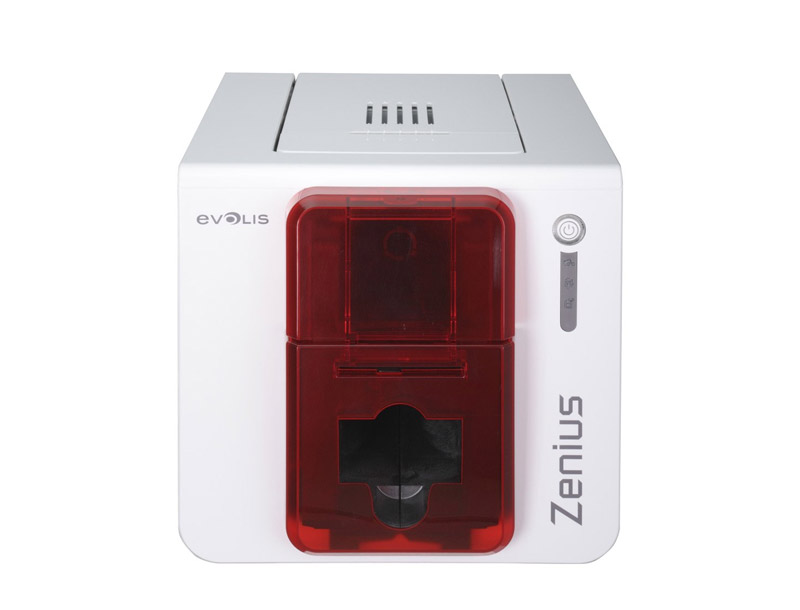

Evolis Zenius

  • Direct-to-card dye-sublimation/Resin thermal transfer
  • Single-sided printing, edge-to-edge
  • 300 dpi print head (11.8 dots/mm)
  • 16 million colors
  • 16MB memory (RAM), 32 MB for the Expert version
  • Colors available: fire red & grey brown

Description

Printing performances

  • Color (YMCKO): 120 – 150 cards/hour1
  • Monochrome: 400 – 500 cards/hour

Additional encoding modules

  • Available modules on the Expert version:
    • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
    • Smart contact station ISO 7816-2
    • Contact smart card encoder – PC/SC, EMV 2000-1
    • Contactless smart card encoder – ISO 14443A, B, ISO15693, Mifare, DesFire, HID iCLASS
    • Other specific encoders upon request
  • Internal USB ports
  • Options can be combined
  • Factory-installed or installed on-site

Interfaces

  • USB (1.0, 1.1, 2.0, 3.0), cable supplied
  • Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led) on the Expert version

Safety

  • Support for Kensington® security lock
  • Data encryption for magnetic encoding

Display

  • Printer LEDs
  • Graphical notifications from the printer2: cleaning alerts, empty/low level ribbon alert, etc.

Card management and specifications

  • Automatic or manual feeding
  • Feeder capacity: 50 cards (0.76 mm – 30 mil)
  • Output hopper capacity: 20 cards (0.76 mm – 30 mil)
  • Card thickness: 0.25 to 0.76 mm (10 to 30 mil), gauge adjustment

Card types:

    • PVC cards
    • Composite PVC cards
    • PET cards
    • ABS cards1
    • Special varnished cards1
    • Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)

Evolis High Trust® ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

  • Automatic identification and setting
  • Delivered in a drop-in cassette for easy handling
  • Ribbon saver for monochrome printing

Software

  • Delivered with Evolis Premium Suite® for Windows®:
    • Printer driver
    • Evolis Print Center for printer administration and settings
    • Evolis Printer Manager for graphical notification3
    • 24/7 online support
    • Compatible with Windows® (32/64 bits): XP SP3, Vista,W7, W8, W10
  • Delivered with cardPresso XXS Lite for designing and editing badges:
    • Internal database up to 50 records
    • Windows® (from XP onwards) and Mac OS X
  • Delivered with a driver for Mac OS X (from 10.5 onwards)
  • Linux OS upon request
  • Evolis Premium SDK for remote supervision of the printer, while facilitating and speeding up integrationinto IT systems

Eco-friendly design, certifications and statement of compliance

  • Standby, sleep modes & reduced energy consumption
  • CE, FCC, IEC, VCCI, CCC, KC, BIS, EAC
  • RoHS

Size and weight

    • Size (H x W x D): 195 x 205 x 315 mm (7.68’’ x 8.07’’ x 12.4’’)
    • Weight: 3.3kg (7.3lbs)
