BEETLE/DN A-Series

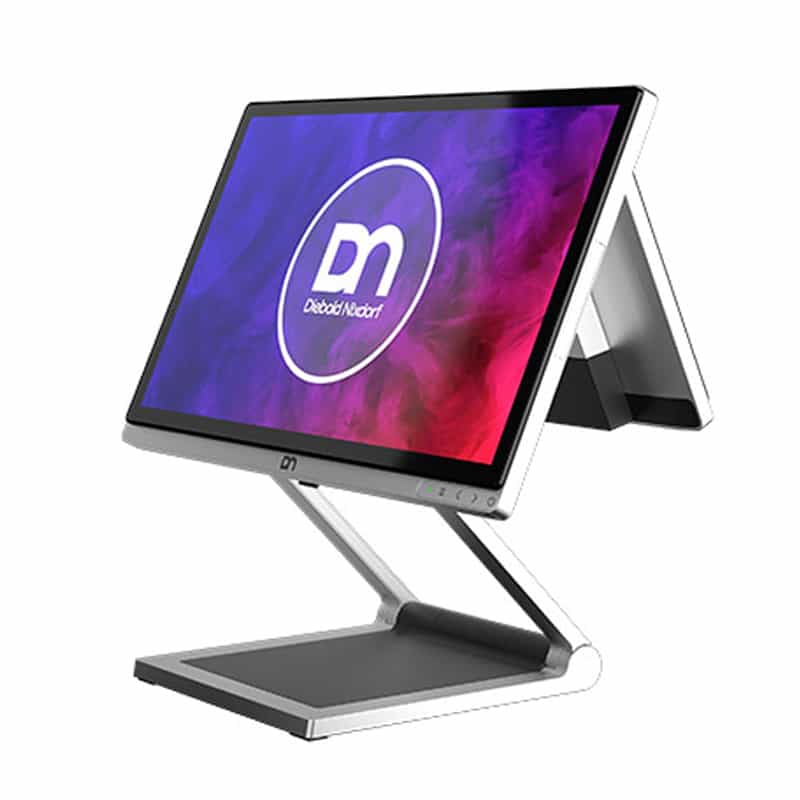

The new BEETLE A-Series is a 15” all-in-one touch POS terminal and kiosk system with a sealed and fanless system design that sets a new bar for the industry.

Description

Features:

APPLICATION

  • Front-end POS system
  • Kiosk solution
  • Information/ service-terminal

EXCELLENT ERGONOMIC DESIGN AND SIMPLE OPERATION

The BEETLE A1050 is designed to provide optimal ergonomics to boost efficiency and reduce downtime.

  • The angle and height-adjustable desktop stand, improved viewing angle, the antiglare display surface and a brighter, high-contrast, LCD support individual adjustments, reduce light reflections and improve the user experience
  • Equipped with up to two solid-state drives the system runs totally silently

BEST-IN-CLASS MANAGEABILITY

The BEETLE platform has borne the “Ready for Management” label for many years and the BEETLE A1050 is no exception.

  • Uses power-saving mobile Core processor technology from Intel
  • The desktop management agent BEETLEINFO supports remote asset management and remote monitoring
  • The service-friendly design enables faster, easier exchange of components (e.g. the swap of the storage device)

Technical Specification:

DISPLAY

  • 15” LED-backlit LCD, 4:3
  • Resolution 1024 x 768 pixels
  • Projected capacitive multi-touch

PROCESSORS

  • Intel Celeron 4305UE /2x 2.0 GHz
  • Intel Core i3-8145UE /2x 2.2-3.9 GHz
  • Intel Core i5-8365UE /4x 1.6-4.1 GHz

MAIN MEMORY

  • 4GB–16GBDDR4RAM

ONBOARD INTERFACES

  • RS232 (switchable 0/5/12V): 2
  • USB (2.0/3.0): 2/2
  • USB-C (PD 5V/12V + DisplayPort) • USB-C (PD 5V/24V for printer)
  • Ethernet LAN: 1Gbit/s
  • Cash drawer

I/O EXPANSION HUB

  • USB-C (PD + DisplayPort) • USB-C (uplink to system)
  • PoweredUSB (12/24V): 1/1 • USB 3.0: 2
  • RS232 (switchable 0/5/12V): 3
  • Ethernet LAN: 10/100/1000 Mbit/s
  • Cash drawer

STORAGE MEDIA

  • Up to 2x M.2 SSD

ADAPTABLE PERIPHERALS

  • MSR / iButton / NFC
  • Rear-mounted customer display

INTEGRATED FEATURES

  • Loudspeakers
  • Firmware TPM 2.0
  • NFC reader option
  • WLAN / Bluetooth option

COLOR OPTIONS

  • Black or silver

SYSTEM MANAGEMENT

  • BEETLEINFO (Management Agent)
  • Desktop Management Interface (DMI)
  • Preboot Execution Environment (PXE)
  • Advanced Configuration and Power Interface (ACPI)
  • Wake on LAN (WoL)
  • System Management BIOS (SMBIOS)
  • Software Options

Operating systems:

  • Windows 10 IoT Ent. 2019 LTSC
  • WNLPOS (Linux)
  • Designed for any POS application
